Home > Outdoor Fiber Optic Cable >

GYTS Fiber Optic Cable Multimode OM3 Central Tube Type For Telecommunication

Product Categories

guangzhou fiber cablepuls co ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

GYTS Fiber Optic Cable Multimode OM3 Central Tube Type For Telecommunication

Name: GYTS Fiber Optic Cable Multimode OM3 Central Tube Type For Telecommunication
Brand: PUNAISGD
Price: 1 USD

China GYTS Fiber Optic Cable Multimode OM3 Central Tube Type For Telecommunication wholesale

Brand Name : PUNAISGD

Model Number : GYTS-48B1.3

Certification : CE/ROHS/ISO9001

Place of Origin : Guangdong, China

MOQ : 1km

Price : negociate

Payment Terms : T/T,Western Union

Supply Ability : 1000000

Delivery Time : 7days

Packaging Details : wooden drum

Type : GYTS-48B1.3

Number of Conductors : 48B1.3

armored : steel wire and armored

Application : duct

Outer Jacket Material : PE(Black)

Armor Layer : Steel Tape

Package : Wooden Drum

Fiber type : G652D,single mode or multi mode,50/125,62.5/125,OM3

Fiber color : Blue,Orange,Brown,Aqua,Grey

Strength member : FRP / STEEL WIRE

Name : Outdoor Fiber Optic Cable

Contact Now

GYTS Fiber Optic Cable Multimode OM3 Central Tube Type For Telecommunication

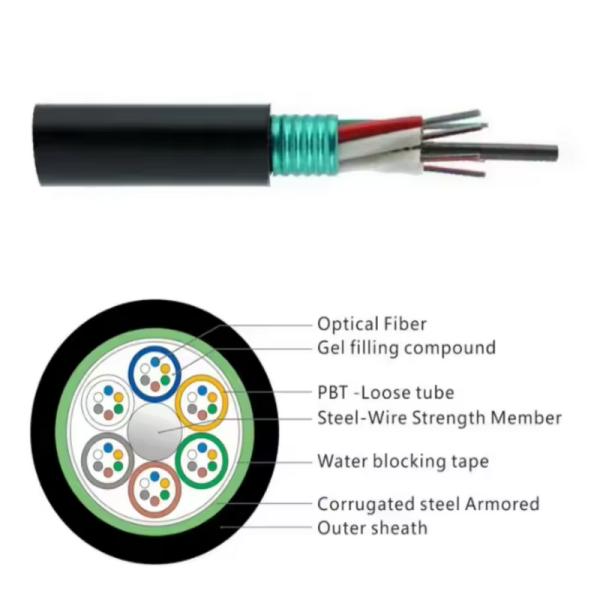

Structure

Metal Strength member, Central tube type, gelly filled, Polyethylene(PE) sheath, PSP armor and Polyethylene(PE) outer sheath, Outer door optical fiber cable for telecommunication

Technical characteristics

The unique fiber excess length control method provides the cable with excellent tension and environmental properties
The loose tube material itself have good water-resistant properties of solution and higher intensity, the special jelly filled in the loose tube protection the optical fiber.
Good pressure-resistant properties and bending properties
The out PE sheath provides good anti-UV radiation performance
Adopt the following measures to ensure the waterproof properties of fiber optical cable
Steel wires strengthen
The unique waterproof compounds filled in the loose tube
Safety-filled cable core

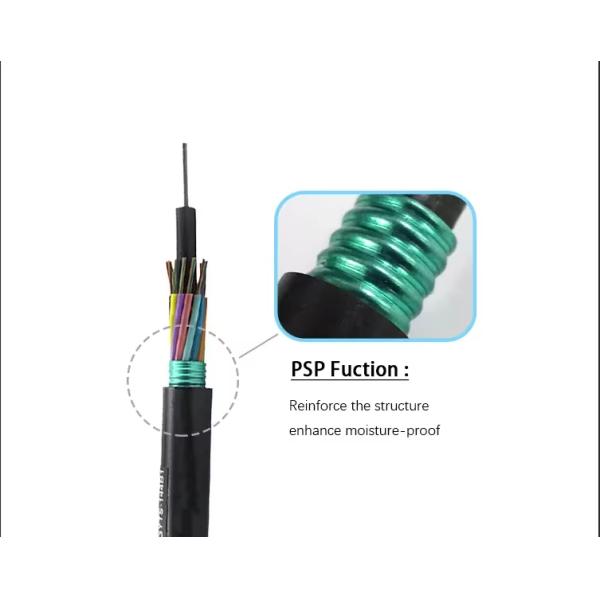

PSP armor structure has super crush resistance.

GYTS Fiber Optic Cable Multimode OM3 Central Tube Type For Telecommunication

Feature:

Loose tube gel-filled construction for superior fiber protection. Corrugated steel tape armorto protect cable from mechanical damage and rodent protection.

UV and moisture-resistant design.
Applications
Backbones and Access.
Installed in ducts, underground conduits.

Dimensions of Cable Constructions

Fiber count	Structure	Fibers per tube	Loose tube diameter (mm)	CSM diameter/pad diameter (mm)	Nominal Thickness of outer jacket (mm)	Cable diameter/ Height (mm)	Cable weight (kg/km)
4	1+5	4	1.8±0.1	1.4/1.4	1.4	8.5±0.3	75
6	1+5	6	1.85±0.1	1.4/1.4	1.4	8.5±0.3	75
8	1+5	8	1.9±0.1	1.4/1.4	1.4	8.5±0.3	75
12	1+5	6	1.9±0.1	1.4/1.4	1.4	8.5±0.3	75
24	1+5	6	1.9±0.1	1.4/1.4	1.4	8.5±0.3	75
36	1+6	12	1.95±0.1	1.5/1.5	1.6	8.8±0.3	85
48	1+5	12	1.95±0.1	1.5/1.5	1.6	9.3±0.3	90
60	1+5	12	1.95±0.1	1.6/1.6	1.6	9.3±0.3	90
72	1+6	12	1.95±0.1	2.0/2.0	1.6	9.6±0.3	95
96	1+8	12	1.95±0.1	1.4/3.2	1.6	11.5±0.3	120
144	1+12	12	1.95±0.1	2.0/5.7	1.8	14.2±0.3	185
216	1+6+12	12	1.95±0.1	2.0/2.0	1.8	14.5±0.3	200
288	1+9+15	12	1.95±0.1	2.0/3.7	1.8	16.2±0.3	240

Installation Instructions

Company Profile

Product packaging

Our Advantages

FAQ

1. Why choose us?
We are manufacturer, Located in Guangzhou, China, started from 2011, sell to Domestic Market(100.00%). There are total about 11-50 people in our factory.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.Can you send products to my country?
Sure, we can. If you do not have your own ship forwarder, we can help you.

4. Can you do OEM for me?
We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you.

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,PayPal,Western Union,Escrow;
Language Spoken:English,Chinese
